Z-Communications, Inc. Press Release - 1/26/2009

Z-Comm Introduces the CRO3567A-LF S-Band VCO

Z-Communications, Inc.CRO3567A-LF phase noiseSAN DIEGO, January 26, 2009: Z-Communications, Inc. announces a new RoHS compliant VCO (Voltage-Controlled Oscillator) model CRO3567A-LF in S-band. The CRO3567A-LF operates from 3565-3568 MHz with a tuning voltage range of 0.5-4.5 Vdc. This VCO features a typical phase noise of -112 dBc/Hz @ 10 kHz offset and a typical tuning sensitivity of 8 MHz/V.

The CRO3567A-LF is designed to deliver a typical output power of 3 dBm at 5 Vdc supply while drawing 17 mA (typical) over the temperature range of -40º to 85º C. This VCO features typical 2nd harmonic suppression of -40 dBc and comes in Z-Comm’s industry standard MINI-16-SM package measuring 0.5 in. x 0.5 in. x 0.22 in. It is available in tape and reel packaging for production requirements. The CRO3567A-LF is also ideal for automated surface mount assembly and reflow.

CRO3567A-LF is well suited for satellite communication applications that require superior 2nd harmonic suppression and ultra low phase noise performance. Additional specifications for this product can be found on-line at http://www.zcomm.com/webstore/ProductInfo.aspx?productid=CRO3567A-LF .

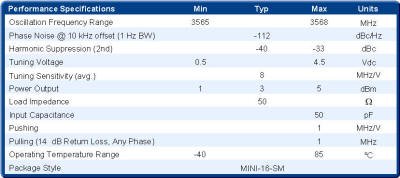

CRO3567A-LF specifications
For further information on this model or any other product from Z-Communications, Inc. please contact our Applications department via e-mail at applications@zcomm.com or call us at 858-621-2700.

Part Number: CRO3567A-LF
Delivery: Stock - 6 weeks
Contact: Z-Communications, Inc.
Tel: 858-621-2700
Fax: 858-621-2722
Email Technical Support – applications@zcomm.com
Email Sales: sales@zcomm.com
URL: http://www.zcomm.com

For further information on this model or any other product from Z-Communications, Inc. please contact our Applications department via e-mail at applications@zcomm.com or call us at 858-621-2700.



RoHS logoAbout Z-Communications, Inc.


Z-Communications, Inc. is a pioneer in developing Voltage Controlled Oscillators (VCO) and Phase Locked Loop (PLL) synthesizers for the commercial marketplace since 1987 and headquartered in 9939 Via Pasar, San Diego, CA 92126.

With devoted customers, Z-Communications, Inc. serves wireless and communication industries by providing the most effective and competitively priced RF/microwave components, as well as custom component designed to meet customer specific needs. Our sophisticated automated manufacturing facility, located in the US at our headquarters in San Diego guarantees a high level of repeatability, reproducibility and control. For more information please visit us at

www.zcomm.com or contact our sales department.



Posted 3/2/2009
