Z-Communications, Inc. Press Release - October 26 2009

Z-Comm Introduces the V350ME24-LF Low Phase Noise UHF VCO

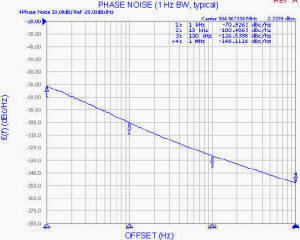

Z-Communications, Inc.Z-Comm V350ME24-LF phase noiseSan Diego, CA, October 26 2009 -- Z-Communications, Inc. announces a new RoHS compliant VCO (Voltage-Controlled Oscillator) model V350ME24-LF in UHF-band. The V350ME24-LF operates at 200-400 MHz with a tuning voltage range of 1-16 Vdc. This VCO features a typical phase noise of -95 dBc/Hz @ 10 kHz offset and a typical tuning sensitivity of 16 MHz/V.

Z-Comm V350ME24-LF UHF VCOThe V350ME24-LF is designed to deliver a typical output power of 3 dBm at 10 Vdc supply while drawing 16 mA (typical) over the temperature range of -20º to 55º C. This VCO features typical second harmonic suppression of -20 dBc and comes in Z-Comm’s standard MINI-14S package measuring 0.5 in. x 0.5 in. x 0.22 in. It is available in tape and reel packaging for production requirements. The V350ME24-LF is also ideal for automated surface mount assembly and reflow.

V350ME24-LF is well suited for mobile radio and test and measurement applications that require ultra low phase noise performance. Additional specifications for this product can be found on-line at http://www.zcomm.com/webstore/ProductInfo.aspx?productid=V350ME24-LF .

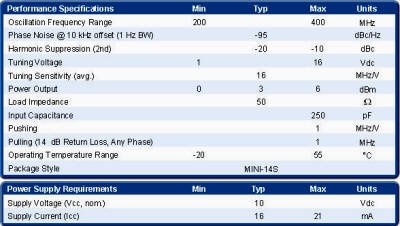

Z-comm V350ME24-LF electrical specs
For further information on this model or any other product from Z-Communications, Inc. please contact our Applications department via e-mail at applications@zcomm.com or call us at 858-621-2700.

Part Number: V350ME24-LF
Delivery:/td> Stock - 4 weeks
Contact: Z-Communications, Inc.
San Diego, CA
Tel: 858-621-2700
Fax: 858-621-2722
Email Technical Support – applications@zcomm.com
Email Sales: sales@zcomm.com
URL: http://www.zcomm.com


For further information on this model or any other product from Z-Communications, Inc. please contact our Applications department via e-mail at applications@zcomm.com or call us at 858-621-2700.

RoHS logoAbout Z-Communications, Inc.


Z-Communications, Inc. is a pioneer in developing Voltage Controlled Oscillators (VCO) and Phase Locked Loop (PLL) synthesizers for the commercial marketplace since 1987 and headquartered in 9939 Via Pasar, San Diego, CA 92126.


With devoted customers, Z-Communications, Inc. serves wireless and communication industries by providing the most effective and competitively priced RF/microwave components, as well as custom component designed to meet customer specific needs. Our sophisticated automated manufacturing facility, located in the US at our headquarters in San Diego guarantees a high level of repeatability, reproducibility and control. For more information please visit us at


www.zcomm.com or contact our sales department.














Posted  10/26/2009
