Z-Communications, Inc. Press Release - October 28, 2010

Z-Communications' V585ME12-LF, L-Band VCO Features Low Phase Noise

Z-Communications, Inc.

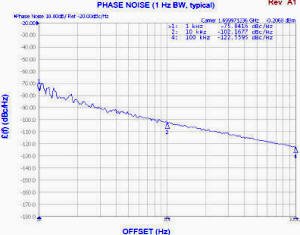

Z-Comm V585ME12-LF phase noiseSan Diego, CA, October 10, 2010 --

Z-Communications, Inc. announces a new RoHS compliant VCO (Voltage-Controlled Oscillator) model V585ME12-LF in L-Band. The V585ME12-LF operates at 1500-1900 MHz with a tuning voltage range of 0.8-20 Vdc. This VCO features a typical phase noise of -102 dBc/Hz @ 10 KHz offset and a typical tuning sensitivity of 35 MHz/V.

Z-Comm V585ME12-LF packageThe V585ME12-LF is designed to deliver a typical output power of 5.75 dBm at 10 Vdc supply while drawing 15 mA (typical) over the temperature range of 0º to 80º C. This VCO features typical second harmonic suppression of -10 dBc and comes in Z-Comm's MINI-14 package measuring 0.5 in. x 0.5 in. x 0.22 in. It is available in tape and reel packaging for production requirements. The V585ME12-LF is also ideal for automated surface mount assembly and reflow.

V585ME12-LF is well suited for satellite communication and test equipment applications that require low phase noise performance. Additional specifications for this product can be found on-line at
http://www.zcomm.com/webstore/ProductInfo.aspx?productid=V585ME12-LF.


Z-Comm V585ME12-LF electrical specs



Contact:

Z-Communications, Inc.
San Diego, CA
Tel: 858-621-2700
Fax: 858-621-2722
Email Technical Support – applications@zcomm.com
Email Sales: sales@zcomm.com
URL: http://www.zcomm.com

RoHS logoAbout Z-Communications, Inc.


Z-Communications, Inc. is a pioneer in developing Voltage Controlled Oscillators (VCO) and Phase Locked Loop (PLL) synthesizers for the commercial marketplace since 1987 and headquartered in 9939 Via Pasar, San Diego, CA 92126.



With devoted customers, Z-Communications, Inc. serves wireless and communication industries by providing the most effective and competitively priced RF/microwave components, as well as custom component designed to meet customer specific needs. Our sophisticated automated manufacturing facility, located in the US at our headquarters in San Diego guarantees a high level of repeatability, reproducibility and control. For more information please visit us at www.zcomm.com or contact our sales department.








Posted  11/1/2010
