Saelig Intros Economical 4-Channel 100/200MHz SDS1000X-E "Super Phosphor" Oscilloscopes

Saelig Company 28 Years - RF Cafe

If you remember seeing a company press release or new product announcement on the RF Cafe homepage but now it is gone, try looking through the archives. Content is the copyright of the company represented, but the page format is my copyright and cannot be distributed to other media outlets. Please submit your content for consideration to rfcafe@earthlink.net.

2014 | 2015 | 2016 | 2017


Fast refresh rate, advanced triggering and features, as well as deep memory help these new four-channel scopes break a new price/performance barrier

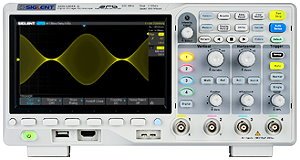

Saelig Intros Economical 4-Channel 100/200MHz SDS1000X-E "Super Phosphor" Oscilloscopes - RF CafeNovember 27, 2017 - Fairport, NY, USA: Saelig Company, Inc., (Saelig) (www.saelig.com) has introduced the Siglent SDS1104X-E (100 MHz) and Siglent SDS1204X-E (200 MHz) four-channel oscilloscopes that are built on the same platform as the very popular SDS1202X-E but with many improvements, including two 1 GSa/s ADCs and two 14 Mpt memory modules. Waveform capture rates are up to 100,000 wfms/s in normal mode and 400,000 wfms/s in sequence mode. The SDS1000X-E scopes feature a large 7" 256-level color display with intensity grading and color temperature features to show signal event occurrence statistics.

The new 4-channel SDS1000X-E series employs a new generation of SPO (Super -Phosphor Oscilloscope) technology that provides excellent signal fidelity and performance since a hardware co-processor delivers measurements quickly and accurately without slowing acquisition or front-panel response. Additionally, the low-noise design allows measurements of very small signals since the scopes support 500uV/div to 10V/div voltage settings, with most common adjustments quickly accessible with single-button front-panel control.

Fast four-channel sampling is achieved with the two-ADC front-end design: when all channels are enabled, each channel has sample rate of 500 MSa/s and a standard record length of 7 Mpts. When only one channel per ADC is active, the maximum sample rate is 1 GSa/s and the maximum record length is 14Mpts. This new Siglent oscilloscope series supports multiple powerful triggering modes (Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video) but also include serial bus data triggering since decoding for IIC, SPI, UART, CAN, LIN bus types is included as standard. The X-E models also include History waveform recording, and sequential triggering to facilitate extended waveform recording and analysis. A 1 million point FFT math function gives the SDS1000X-E very high frequency resolution when observing signal spectra.

The SDS1000X-E series four channel scopes also feature searching and navigating, on-screen Bode plots (gain/ phase vs. frequency), 16 digital channels (option), an external USB powered 25 MHz AWG module (option), a Siglent USB 802.11b/g/b WiFi adapter (option), and an embedded application that allows remote control of the instrument via a web browser for configuration, collecting data, or for remote troubleshooting and monitoring.

Supplied with four passive probes, the Siglent SDS1000X-E 4-channel oscilloscopes are available now from only $499 from Saelig Company, Inc. A full range of current and voltage probes is also available. For detailed specifications, free technical assistance, or additional information, please contact Saelig at 1-888-7SAELIG, via email: info@saelig.com, or visit www.saelig.com.

About Saelig Company, Inc.

Founded in 1988 in Rochester, New York, Saelig is a North American distributor with a growing reputation for finding and sourcing unique, easy-to-use control and instrumentation products and related active components, for use in a variety of industries. Products lines are continuously added from sources across the globe, and are offered at highly competitive prices, accompanied by full in-house technical support, exceptional customer service, and fast delivery. For full details of available product lines, please visit www.saelig.com.

Contact Info

Alan Lowne
President
Saelig Company, Inc.
71 Perinton Parkway
Fairport, NY  14450
USA Toll-Free: (888) 7-SAELIG
                       (888) 772-3544
Tel: (585) 385-1750
Email: info@saelig.com
Web: www.saelig.com
