Ultra-compact, portable measurement tool streams data to laptop or mobile device for measurements on the go!

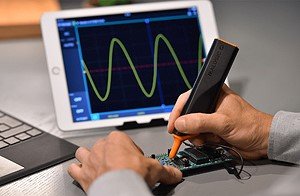

Saelig Introduces Wireless 30 MHz Scope-In-A-Probe - RF CafeFairport, NY, USA: Saelig Company, Inc., (Saelig) (www.saelig.com) has introduced the IkaScope WS200, a pen-shaped battery-powered wireless oscilloscope that streams captured signals to almost any WiFi-connected screen. The IkaScope WS200 offers a 30 MHz bandwidth with its 200 MSa/s sampling rate and the maximum input is ±40 Vpp. It provides galvanically-isolated measurements even when a USB connection is charging the internal battery. The IkaScope WS200 will work on desktop computers (Windows, Mac, and Linux) as well as on mobile devices like tablets or smartphones (iOS and Android Q4 2017). The free application software can be downloaded for whichever platform is needed.

The IkaScope WS200 has no power switch; it detects pressure on the probe tip and turns on automatically. Patented ProbeClick technology saves battery life: all power-consuming circuitry is only turned on when the probe tip is pressed, and the IkaScope WS200 automatically shuts down completely after a short period of non-use. The internal 450mAh battery lasts about one week with daily regular use before recharging is necessary. An isolated USB connection allows for recharging the internal battery and two LEDs in the unit indicate battery charge and WiFi status.

Clicking the Autoset button on the IkaScope software automatically adjusts gain and time-base to quickly view the signal optimally. The IkaScope WS200 also knows when to measure and when to hold the signal display without the need for a Run/Stop button. The IkaScope's innovative Automatic History feature saves a capture of the signal when releasing pressure on the ProbeClick tip. The History Database is divided into Current Session and Favorites, where signal captures are permanently saved, even after the application is closed. Previously measured signals can quickly be recalled.

Most desktop oscilloscopes have a static reference grid with a fixed number of divisions, but the IkaScope allows pinch and zoom on touch screens (or zoom in/out with a mouse wheel), stretching the grid and allowing an operator to move and zoom through a signal capture for detailed review. The associated software even has a share button on the screen: simply click on it to share screenshot measurements.

Made by Ikalogic, a growing European embedded test equipment manufacturer, the CE/FCC/RoHS-certified IkaScope WS200 Oscilloscope is small (6.4" x 1.3" x 0.7") and very lightweight (2 oz.) and is ideal for every traveling toolbox. It is available now from Saelig Company, Inc. Fairport, NY. For detailed specifications, free technical assistance, or additional information, please contact (toll-free in the US) 1-888-7SAELIG, via email: info@saelig.com, or visit www.saelig.com

About Saelig Company, Inc.

Founded in 1988 in Rochester, New York, Saelig is a North American distributor with a growing reputation for finding and sourcing unique, easy-to-use control and instrumentation products and related active components, for use in a variety of industries. Products lines are continuously added from sources across the globe, and are offered at highly competitive prices, accompanied by full in-house technical support, exceptional customer service, and fast delivery. For full details of available product lines, please visit www.saelig.com.

Contact Info

Alan Lowne

President

Saelig Company, Inc.

71 Perinton Parkway

Fairport, NY  14450

USA Toll-Free: (888) 7-SAELIG

                       (888) 772-3544

Tel: (585) 385-1750

Email: info@saelig.com

Web: www.saelig.com





Posted September 26, 2017
