Saelig Introduces Compact 6 GHz USB RF Vector Spectrum Analyzer

Press Releases on RF Cafe

Content is copyright of company represented, but page format is my copyright - do not distributed.

Press Release Archives:
2018 | 2017 | 2016 | 2015 | 2014| 2013 | 2012 | 2011 | 2010 | 2009 | 2008

Saelig Company 28 Years - RF Cafe



Pocketable RF spectrum analyzer provides features comparable to full-size desktop analyzers in a tiny package

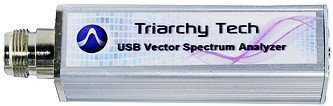

Saelig Introduces Compact 6 GHz USB RF Vector Spectrum Analyzer - RF CafeJanuary 10, 2018 - Fairport, NY, USA: Saelig Company, Inc., (Saelig) (www.saelig.com) announces the availability of the Triarchy Technologies VSA6G2A Vector Spectrum Analyzer - an economical USB RF tool that plugs into the USB port of a PC and is controlled with the provided PC application software. It offers almost all of the functionality of a benchtop spectrum analyzer. Its frequency range of operation is from 100 Hz to 6.2 GHz, with an amplitude measurement range of -140 dBm to 24 dBm. The RBW (resolution bandwidth) range is from 0.2 Hz to 10 MHz and the noise level (DANL) is as low as -140 dBm.

The VSA6G2A is very compact (4" x 1" x 1") and easy to use. The software user interface has been designed to resemble the front panel of a standard desktop spectrum analyzer, allowing users to use the application intuitively without a steep learning curve. Touch screen support is also provided, making the VSA6G2A quick to operate.

The VSA6G2A's demodulation capabilities allow it to measure analog and digitally modulated signals, such as AM, FM, PM, MSK, and QPSK. Additionally, the VSA6G2A has I and Q signal ports, enabling it to work as a wide-band I/Q receiver platform. Visualizing pulse modulated signals is usually not very easy, but with the VSA6G2A's trigger input it is straightforward to view these waveforms.

The analyzer's operation is divided into two bands to cover the complete operating range: a low band (100 Hz to 2 MHz) and a high band (1 MHz to 6.2 GHz). The VSA6G2A offers an N (female) RF signal input connector and a mini-B USB connector for interfacing with the PC. Four MMCX connectors provide I/Q port access.

Signal spectra are clearly displayed on the attached PC, as well as density, waterfall images, and demodulated waveforms and eye diagrams. The waterfall display helps in showing signals like frequency hopping Bluetooth. The VSA channel power function makes it simple to measure signal power automatically. Production testing is also facilitated when using preselected Pass/Fail criteria.

Weighing only 3.5 oz. and powered from a PC's USB port, the VSA6G2A is ideal for field test and installation since it can be easily slipped into a laptop bag and used for monitoring RF signals in temperatures from -10decC to +50°C. It is also suitable for use in benchtop EMC testing with near-field antennas.

Made by Triarchy Technologies Corp., an innovative Canadian RF design house, the VSA6G2A Vector Spectrum Analyzer is available now at $950 from Saelig Company, Inc. Fairport, NY, Triarchy's authorized U.S. distributor.

For detailed specifications, free technical assistance, or additional information, please contact (toll-free in the US) 1-888-7SAELIG, via email: info@saelig.com, or visit www.saelig.com

About Saelig Company, Inc.

Founded in 1988 in Rochester, New York, Saelig is a North American distributor with a growing reputation for finding and sourcing unique, easy-to-use control and instrumentation products and related active components, for use in a variety of industries. Products lines are continuously added from sources across the globe, and are offered at highly competitive prices, accompanied by full in-house technical support, exceptional customer service, and fast delivery. For full details of available product lines, please visit www.saelig.com.

Contact Info

Alan Lowne
President
Saelig Company, Inc.
71 Perinton Parkway
Fairport, NY  14450
USA Toll-Free: (888) 7-SAELIG
                       (888) 772-3544
Tel: (585) 385-1750
Email: info@saelig.com
Web: www.saelig.com





Posted January 12, 2018
