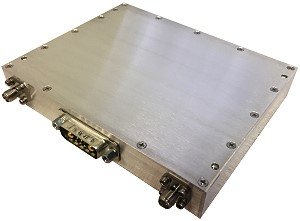

TA1181 - 400 - 450 MHz, 158 W CubeSat/NanoSat Base Station Amplifier
February 21, 2018: Triad RF Systems announces the
TA1181, which has been designed for use from 400 to 450 MHz, and
is typically used in but not limited to CubeSat and NanoSat GCS (Ground Station) applications.
This amplifier module has a maximum output power of 158 Watts and can be used with a
multitude of waveforms, from GMSK/BPSK up to highly modulated signals such as 64QAM and
256QAM for higher data rate applications.
This class AB LDMOS module is designed for both military
and commercial applications. It is capable of supporting any signal type and modulation
format, including but not limited to 3-4G telecom, WLAN, OFDM, DVB, and CW/AM/FM. The
latest device technologies and design methods are employed to offer high power density,
efficiency, and linearity in a small, lightweight package.
The TA1181 features high speed on/off control, over and under voltage protection,
and temperature monitoring all packed into a small form factor.
About Triad RF System
Triad RF Systems, founded in 2010, designs and manufactures high-performance, high-power
RF and microwave amplifiers operating at frequencies from 10 MHz to 20 GHz.
The company focuses on delivering extremely high reliability and ruggedness when integrating
its products within the confines of subsystems and systems - without sacrificing efficiency
or linearity and adhering to stringent requirements for size, weight, and power. The
company's products are employed in commercial and military applications, including terrestrial
wireless and satellite communications, radar, electronic warfare, medical, digital video
broadcast, and avionics systems.
