TTRM1200: 30-3000 MHz, 8 W Bidirectional Amplifier

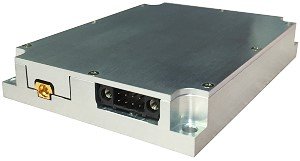

April 25, 2018: Triad RF Systems has released the TTRM1200, a wideband GaN BDA that
operates from 30 MHz to 2700 MHz and produces over 8 W of TX power. Measuring
only 3.25 x 2.42 x 0.54 inches, this feature rich BDA is also one of the most efficient.
While producing 8W of RF power, it only consumes 24 W of DC power. It also produces
over 2 W of linear 16 QAM power with <9% EVM. In order to operate on various
existing platforms, the unit features a wide DC input range of +11 to +28 VDC. Switching
between TX and RX takes less than 1 μsec and can be performed manually. Additionally,
base plate temperature can be monitored via an analog temperature sensor.
This class AB GaN module is designed for both military
and commercial applications. It is capable of supporting any signal type and modulation
format, including but not limited to 3-4G telecom, WLAN, OFDM, DVB, and CW/AM/FM. The
latest device technologies and design methods are employed to offer high power density,
efficiency, and linearity in a small, lightweight package.
Features: High speed on/off control, Temperature monitor, Output over-temperature
protection, Manual Tx/Rx switching (TTL)
About Triad RF System
Triad RF Systems, founded in 2010, designs and manufactures high-performance, high-power
RF and microwave amplifiers operating at frequencies from 10 MHz to 20 GHz.
The company focuses on delivering extremely high reliability and ruggedness when integrating
its products within the confines of subsystems and systems - without sacrificing efficiency
or linearity and adhering to stringent requirements for size, weight, and power. The
company's products are employed in commercial and military applications, including terrestrial
wireless and satellite communications, radar, electronic warfare, medical, digital video
broadcast, and avionics systems.
