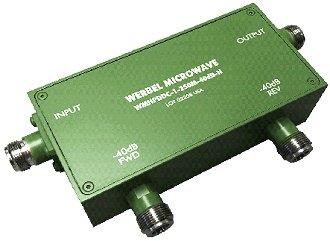

Werbel Microwave WMHPDDC-1-250M-40dB-N 40 dB Dual Directional Coupler for 1 to 250 MHz.

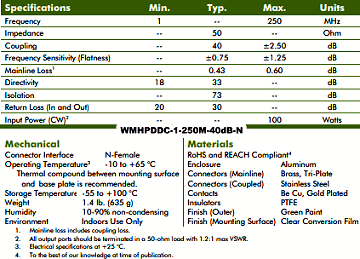

June 24, 2025 - Werbel Microwave's Model WMHPDDC-1-250M-40dB-N is an internally isolated, dual directional coupler that covers the 1-250 MHz band with 40 dB nominal coupling (±2.5 dB) and high directivity, using N-female RF connectors. Capable of handling 100 watts CW. Coupling flatness ±0.75 dB typical. Mainline loss 0.43 dB typical. Directivity 33 dB typical. Return loss mainline 30 dB typical. Isolation is 73 dB typical. Operating temperature is -10 to +65°C. Purchase direct via DigiKey Marketplace.
About Werbel Microwave
In-House Manufacturing Capability
Since 2014, Werbel Microwave has designed and
produced high performance radio frequency components for military, commercial, test
and measurement applications.
Werbel Microwave welcomes customers to submit their customized RF requirements for quotation. Werbel Microwave also welcomes distributors and resellers.
Orders placed online typically ship within 24 hours.
We have expanded in-house engineering capabilities to support and maintain product design with minimal end-of-life risk.
Contact:
Ernest T. Werbel, Jr.
President / Chief Engineer
Werbel Microwave LLC
628 NJ-10, Suite 14
Whippany, NJ, 07981
Tel: (973) 515-3001
Fax:
(973) 515-3004
Cell: (973) 900-2480
E-Mail: ernest@werbelmicrowave.com
WWeb: werbelmicrowave.com
