A special promotional sale price is in effect through the end of June 2026!
Werbel Microwave WM3PD-6-18-S, 3-Way Power Divider for 6-18 GHz.
May 8, 2026 - Werbel Microwave began as a consulting firm, specializing in RF components design, with the ability to rapidly spin low volume prototypes, and has quickly grown into a major designer and manufacturer with volume production capacities.

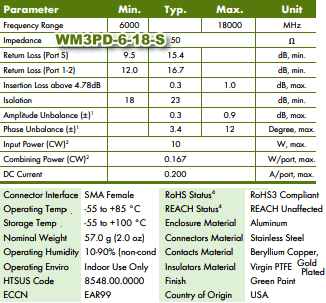

Werbel's new WM3PD-6-18-S, 3-way Wilkinson divider that operates from 6 to 18 GHz. It is part of Werbel Microwave's catalog of power splitters/combiners that offer a wide range of port count and frequency ranges. Its compact aluminum enclosure measures 1.57 x 1.57 x 0.38 inches. The device is RoHS compliant, however it may be specially ordered with lead solder. Return loss 14 dB typical input, 15 dB typical output. Insertion loss above 4.8 dB is 0.3 dB typical. Isolation 23 dB typ. Phase balance 3.4° typical.
Designed and assembled in the USA. "No Worries with Werbel!"
View the WM3PD-6-18-S datasheet here.
Purchase the WM3PD-6-18-S directly via our distributors, Digi-Key, and Hasco.
About Werbel Microwave
In-House Manufacturing Capability
Since 2014, Werbel Microwave has designed and
produced high performance radio frequency components for military, commercial, test
and measurement applications.
Werbel Microwave welcomes customers to submit their customized RF requirements for quotation. Werbel Microwave also welcomes distributors and resellers.
Orders placed online typically ship within 24 hours.
We have expanded in-house engineering capabilities to support and maintain product design with minimal end-of-life risk.
