FT108 Programmable bidirectional Filter Bank
Windfreak Technologies FT108 5 MHz to 8 GHz,
15-Band, Switchable RF
Filter

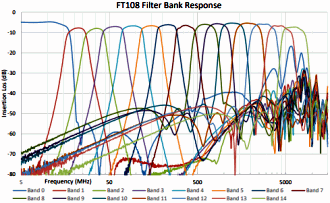

Windfreak Technologies FT108 Switchable RF
Filter Response Graph
Windfreak Technologies FT108 Switchable RF
Filter Software Interface
Windfreak Technologies FT108 Specifications (partial)
Port Richey, Florida, April 17, 2024 - Windfreak Technologies is proud to
announces the availability of our FT108, an innovative programmable
bidirectional filter bank spanning a frequency range of 5 MHz to 8 GHz in 15
bands. Band selection can be controlled through USB, UART or at high speeds
through powerful triggering modes. Each unit is factory tested via Network
Analyzer with unique data stored in the device to help with its use.
Crossover
frequencies are stored so the user can send a frequency command and the FT108
will utilizes Intelligent Band Selection logic to automatically toggle the
optimal filter path based on minimum insertion loss. Readback of FT108 insertion
loss at any frequency between crossover points allows for easy amplitude
leveling by referencing onboard calibration data to drive external source ALC
(Automatic Level Control).
Designed and manufactured in the USA. In Stock. Ships within 10 days.
Download
FT108 datasheet here.
A Sampling of the FT108's Features
- 15-Channel sub-octave switched filter bank
- Operates with or without a PC
- USB, UART and Trigger through USBC connector
- Onboard Non-Volatile Memory
for factory calibration
- Stored 3 dB bandwidth per band
- Stored 30 dB stopbands
- Stored S21 lookup tables for real-time path loss compensation
- Stored filter
crossover points between bands
- Encoder trigger allows for encoder knob
tuning
- 80 MHz 32-bit ARM processor onboard
- LabVIEW GUI executable and
source code included
Applications
- Wireless communications systems
- RF and Microwave radios
- Software Defined Radio (SDR)
- Pre-selection for Broadband Receivers
- Harmonic rejection for Broadband Transmitters
- Electronic Warfare SIGINT / COMINT
- Automated Test Equipment (ATE)
- Quantum computing and device research
- Satellite Communications
- Medical research and treatment
About Windfreak Technologies
Windfreak Technologies provides low cost, quality, innovative RF products that
are used in a wide range of highly technical applications. Since the conception
of Windfreak, our products have been purchased by a wide range of customers from
around the world. Customers include hobbyists, education facilities, and government
agencies. Our continued commitment is to keep our overhead extremely low, enabling
us to provide high quality, low cost, Made-in-the-USA products. For more information
about Windfreak Technologies' products or the website, please contact David Goins
at 1+ (727) 490-8812 or email:
dgoins@windfreaktech.com.
 Contact
Info:
David Goins, CTO
Windfreak Technologies, LLC
New Port Richey, Florida 34652
Office: +1 (727) 490-8812 URL: www.windfreaktech.com Email:
