LadyBug Technologies - RF Cafe

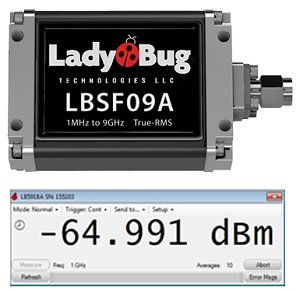

True RMS Average Power Sensor+™ with Triggering 1 MHz to 9 GHz

October 20, 2024 - Santa Rosa, CA - LadyBug Technologies' new LBSF09A is a true RMS, high sensitivity, high accuracy RF & microwave power sensor has frequency coverage from 1 MHz to 9 GHz and an 83 dB dynamic range making ideal for EMC applications, general purpose average power and scalar measurements. The sensor features a fast measurement speed, a broad dynamic range, and the widest set of options for programmatic and embedded applications in the industry. The sensor is useful in research & development, manufacturing & service applications including radar, satellite, and telecommunications.

LadyBug's PMA-12 Power Meter Software is included with each sensor. The software provides full control of the sensor's functions from basic setup to triggering, logging, offset tables, and more. The software package also includes an Interactive IO program with the capability of sending SCPI commands and queries to the sensor, aiding in system development.

Recommended for average power measurements on signals of any modulation type including 802.11ac, GSM, CDMA 2000, CDMA (IS-95), TDMA, Multi-Tone, OFDM, CW, QAM, and more.

Highlights

  • Converge from 1 MHz to 9 GHz
  • Accurate power measurements on any modulated signal
  • Dynamic range -60 dBm to +23 dBm
  • Includes External Triggering (requires interface module)
  • Just Measure – Patented NoZero NoCal before use technology
  • 3-Year warranty & 1-year cal cycle
  • A variety of options such as Security Options & Analog outputs
  • Standard interfaces USBTMC and USBHID
  • SPI and I2C interfaces for ATE, direct control & embedded applications
  • SCPI command set through all three interfaces

LadyBug Technologies has been a world-wide leader in innovative high quality power sensor technology since 2006. Our patented active thermal stabilization that provides continuous measurements with no drift, sets us apart from other power sensors that must stop measuring to zero and calibrate themselves. This along with our uncompromised calibration makes our products ideal for automated systems as well as laboratory and field applications.

About LadyBug Technologies

Founded in 2004, and with over 100 years of Power Sensor experience, LadyBug Technologies’ is a leading manufacturer of high accuracy RF & Microwave Power Sensors. Our innovative solutions are trusted by customers around the world in calibration labs, manufacturing test systems, sat-com testing, and field applications. The company is headquartered in Boise, Idaho. Our management team has additional experience in optical power testing, military radar and a variety of programming environments including LabVIEW, VEE and other languages often used in programmatic systems. Our metrology manager has extensive experience in a broad spectrum of demanding measurement applications. You can be assured that our Power Sensors are designed, built, tested and calibrated without compromise.



Contact:

LadyBug Technologies, LLC
9290 W. Barnes Dr.
Boise, ID 83709
Phone: 707-546-1050
Fax: 707-237-6724
E-Mail: sales@ladybug-tech.com
Web: www.ladybug-tech.com
