Werbel Microwave

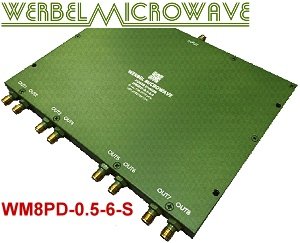

Werbel Microwave 8-Way Power Splitter for 0.5-6 GHz - RF Cafe

Model WM8PD-0.5-6-S from Werbel Microwave is a 8-way power splitter for 0.5 to 6 GHz.

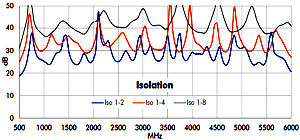

Werbel Microwave Model WM8PD-0.5-6-S Port Isolation - RF Cafe

WM8PD-0.5-6-S port isolation.

May 8, 2024 -- Werbel Microwave's WM8PD-0.5-6-S is 8-way in-line power splitter covering the continuous bandwidth of 500 MHz to 6 GHz in an enclosure measuring 6.50 x 4.97 x 0.55 inches with versatile mounting options. The device is RoHS compliant. Wide spacing between the output pairs of connectors allows for ease of the technician to access connection points using a torque wrench. Consequently, the device saves space in rack mounting applications. Return loss 16 dB typical. Insertion loss 1.0 dB typical. Isolation 20 dB typical. Amplitude balance 0.4dB typical. Phase balance 6 degrees typical.  Designed, assembled, and tested in the USA.

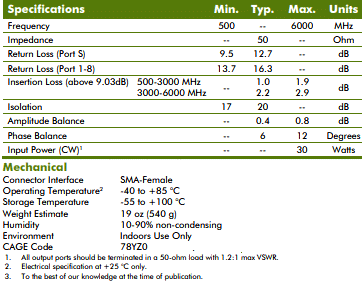

Werbel Microwave WM8PD-0.5-6-S Specifications - RF Cafe


About Werbel Microwave

Werbel Microwave Manufacturing Capabilities - RF Cafe

In-House Manufacturing Capability

Werbel Microwave Made in USA - RF Cafe

Since 2014, Werbel Microwave has designed and produced high performance radio frequency components for military, commercial, test and measurement applications.

Werbel Microwave welcomes customers to submit their customized RF requirements for quotation. Werbel Microwave also welcomes distributors and resellers.

Orders placed online typically ship within 24 hours.

We have expanded in-house engineering capabilities to support and maintain product design with minimal end-of-life risk.


Ernest Werbel, Jr. Werbel Microwave - RF CafeContact:

Ernest T. Werbel, Jr.
President / Chief Engineer
Werbel Microwave LLC
628 NJ-10, Suite 14
Whippany, NJ, 07981
Tel: (973) 515-3001
Fax: (973) 515-3004
Cell: (973) 900-2480

E-Mail: ernest@werbelmicrowave.com

WWeb: werbelmicrowave.com





Posted May 8, 2024
