Laws of Thermodynamics

Introduction

Thermodynamics is the branch of physics that deals with the relationships between heat, work, energy, and temperature. It emerged from the study of steam engines in the 18th and 19th centuries but has since become a cornerstone of modern physics, chemistry, and engineering. The three laws of thermodynamics - along with the often-overlooked Zeroth Law - form a complete framework for understanding energy transfer and transformation in all physical systems, from microscopic particles to galactic structures. This treatise will explore the historical development of these laws, their precise formulations, and their vast applications across science and technology.

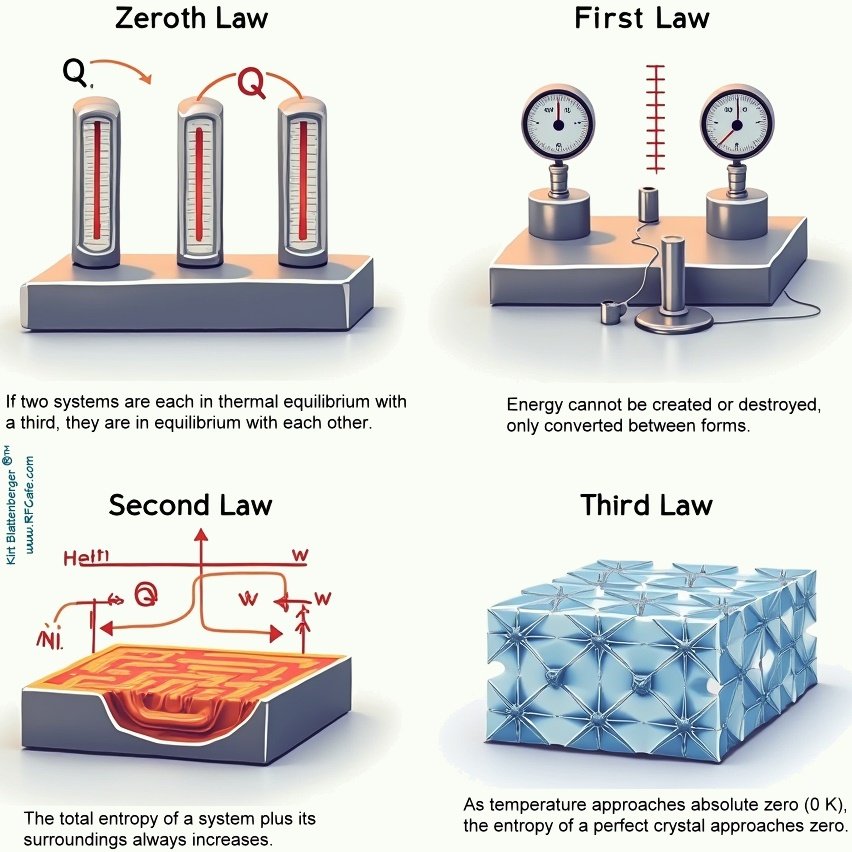

In Summary:

• Zeroth Law → Defines temperature.
• First Law → Energy is conserved.
• Second Law → Entropy always increases.
• Third Law → Absolute zero is unattainable.

Historical Development

Early Foundations (17th-18th Century)

The study of thermodynamics began with early investigations into heat and mechanical work. Scientists like Robert Boyle (Boyle's Law, 1662) and Guillaume Amontons (early gas laws, 1699) laid the groundwork by studying the behavior of gases under pressure. However, heat was still misunderstood - often thought of as a fluid called "caloric."

The Birth of Thermodynamics (19th Century)

• Sadi Carnot (1824) - Published Reflections on the Motive Power of Fire, analyzing the efficiency of steam engines and introducing the concept of a reversible cycle (Carnot cycle).
• James Joule (1840s) - Demonstrated the mechanical equivalent of heat, proving that work and heat are interchangeable forms of energy.
• Rudolf Clausius (1850s) - Formalized the First and Second Laws, introducing the concept of entropy.
• William Thomson (Lord Kelvin) (1850s) - Helped refine the laws and introduced the absolute temperature scale (Kelvin).
• Walther Nernst (1906-1912) - Proposed the Third Law, describing behavior at absolute zero.

These discoveries transformed thermodynamics from an empirical engineering tool into a rigorous scientific discipline.

Key Concepts:

• System vs. Surroundings - A system is the part being studied (e.g., gas in a piston), while surroundings are everything else.
• State Variables - Properties like pressure §, volume (V), temperature (T), and internal energy (U) define a system's state.
• Processes - Changes in a system (e.g., isothermal = constant T, adiabatic = no heat transfer).

            The Laws of Thermodynamics

The Zeroth Law of Thermodynamics

Statement: "If two systems are each in thermal equilibrium with a third, they are in equilibrium with each other."

Why It Matters:

• Defines temperature as a measurable property.
• Allows thermometers to work (since they reach equilibrium with the object being measured).

Example: A thermometer placed in hot coffee reaches equilibrium (same T). The same thermometer placed in metal rod also reaches equilibrium. Therefore, the coffee and rod must be at the same temperature.

The First Law of Thermodynamics (Energy Conservation)

Statement: "Energy cannot be created or destroyed, only converted between forms."

Mathematical Form:

ΔU = Q - W

Where:

• ΔU = Change in internal energy
• Q = Heat added to system
• W = Work done by the system

Derivation:

• Consider a gas in a piston.
• If heat (Q) is added, some energy goes into internal energy (U) and some does work (W) by expanding the piston.
• Thus: Q = ΔU + W → Rearranged to ΔU = Q - W.

Real-World Examples:

• Steam Engine
  • Heat (Q) from burning coal → Work (W) (piston movement) + Internal energy (ΔU) (steam pressure).
  • Efficiency limited by Second Law (not all heat converts to work).

• Human Body
  • Food (Q) → Work (W) (muscle movement) + Internal energy (ΔU) (body heat).
  • Excess energy stored as fat (ΔU > 0).

• Refrigerator
  • Work (W) (electricity) forces heat (Q) to flow from cold interior to hot exterior.
  •  ΔU = Q - W (since work is done on the system, W is negative).

The Second Law of Thermodynamics (Entropy & Irreversibility)

Statement:

"The total entropy of a system plus its surroundings always increases."

Alternative Statements:

• Clausius: "Heat cannot flow spontaneously from cold to hot."
• Kelvin-Planck: "No engine can convert heat entirely into work."

Mathematical Form:

 ΔS_universe ≥ 0

Where:

• ΔS_universe = Change in entropy of system + surroundings.
• For reversible processes: ΔS = 0 (ideal case).
• For irreversible processes: ΔS > 0 (real-world).

Entropy Formula:

S = k_B * ln(Ω)

Where:

• k_B = Boltzmann's constant (1.38 × 10⁻²³ J/K).
• Ω = Number of microscopic states.

Real-World Examples:

• Ice Melting in Warm Water
  • Before: Ordered ice + liquid water (low entropy).
  • After: Mixed water (high entropy).
  • ΔS > 0 (spontaneous process).
• Car Engine (Carnot Cycle)
  • Maximum efficiency (η) given by: η = 1 - (T_cold / T_hot)
  • Example: If T_hot = 500 K, T_cold = 300 K → η = 1 - (300/500) = 40% max efficiency.
• Perpetual Motion Machines
  • Impossible because some energy always becomes waste heat (ΔS > 0).

The Third Law of Thermodynamics (Absolute Zero)

Statement: "As temperature approaches absolute zero (0 K), the entropy of a perfect crystal approaches zero."

Implications:

Absolute zero (0 K = -273.15°C) is unattainable in finite steps. Quantum effects dominate near 0 K (superconductivity, Bose-Einstein condensates).

Real-World Examples:

• Superconductors
  • Below a critical T, electrical resistance drops to zero.
  • Used in MRI machines, maglev trains.
• Laser Cooling
  • Atoms are slowed using lasers, reaching nanokelvin temperatures.
  • Used in quantum computing research.

Advanced Topics & Modern Applications

• Statistical Mechanics
  • Connects microscopic particle behavior to macroscopic thermodynamics.
  • Partition function (Z) calculates thermodynamic properties: Z = Σ e^(-E_i / k_B T)
• Black Hole Thermodynamics
  • Hawking Radiation: Black holes emit thermal radiation with: T_Hawking = ħ c³ / (8π G M k_B) (where M = black hole mass).
• Biological Systems
  • ATP Synthesis: Proton gradients drive ΔG = ΔH - TΔS reactions.
  • Protein Folding: Entropy-enthalpy balance determines stability.

You might be interested in my ad hoc study of the similarity of bug infestations and uncontrolled human immigration, as it pertains to the second law of thermodynamics.
