This newest "What's Your
EQ?" (Electronics Quotient) challenge appeared in the April 1967 issue of
Radio-Electronics magazine. It only has two circuits to work out. The first
is a fairly basic analysis problem where a voltage source and some resistors are
connected. You need to solve for the value of one resistor, given the current
through it. As it often the case, re-drawing the schematic to remove
cross-connections clarifies the situation and makes the task much simpler. The
other problem is a black box type, and it should not pose much of a problem. Not stated
but implied is that the diodes within are ideal and do not have a junction
voltage drop (sorry for the spoiler, but it really should have been included in
the statement). Bon chance, viel Glück, 祝你好运, buena suerte, Удачи, καλή τύχη,
がんばって, powodzenia, buona fortuna, and good luck.
What's Your EQ?
Conducted by E. D. Clark
Two puzzlers for the student, theoretician and practical man. Simple? Double-check
your answers before you say you've solved them. If you have an interesting or unusual
puzzle (with an answer) send it to us. We will pay $10 for each one accepted. We're
especially interested in service stinkers or engineering stumpers on actual electronic
equipment. We get so many letters We can't answer individual ones, but we'll print
the more interesting solutions - ones the original authors never thought of.
Write EQ Editor, Radio-Electronics, 154 West 14th Street, New York, N. Y. 10011.

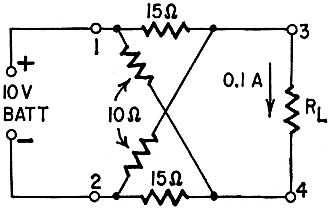

Network Problem
Given the above values, what's the value of RL? - Joseph P. Hallisey

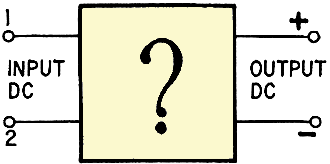

Polarity Straightener
Within a certain voltage range, output volts equals input volts in the above

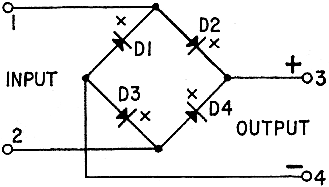

box. No matter which way the input is polarized, however, output remains polarized
as shown. Do you know what's in the box? - David A. Hinton
